Részletek

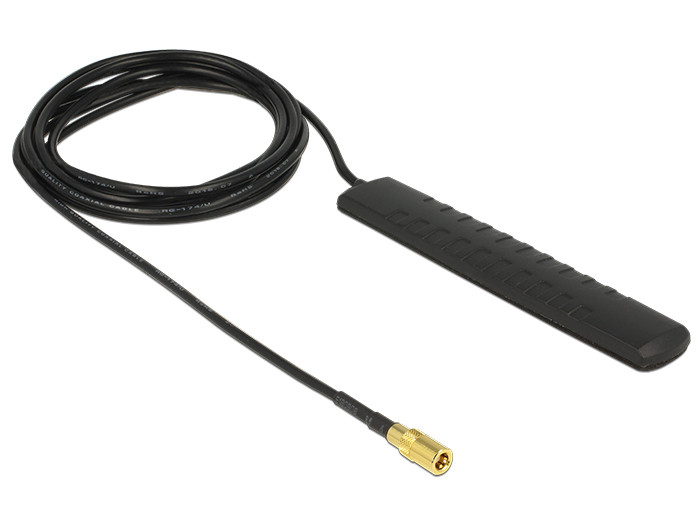

This active antenna by Delock is designed to receive digital broadcasting DAB+ and digital antenna-based television DVB-T2. The integrated amplifier improves the reception signal.
Műszaki adatok
Connector: 1 x SMB plug
Frequency range:
DAB+: 174 - 237 MHz
DVB-T2: 470 - 690 MHz
Gain: 20 dBi
Impedance: 50 Ohm
VSWR: 2.0
Power supply: 5 V
Current consumption: 14 - 28 mA
Operating temperature: -40 C ~ 85 C
Cable type: RG-174
Cable diameter: ca. 2.7 mm
Cable length: ca. 2 m
Dimension (LxWxH): ca. 11.27 x 1.97 x 0.65 cm
Rendszerkövetelmények
DAB+ DVB-T2 receiver with free SMB connector
A csomag tartalma
DAB+ DVB-T2 antenna
Csomag
Poly bag
Gyártó: Delock
Szélesség cm: 0
Hosszúság cm: 0
Magasság cm: 0
