Részletek

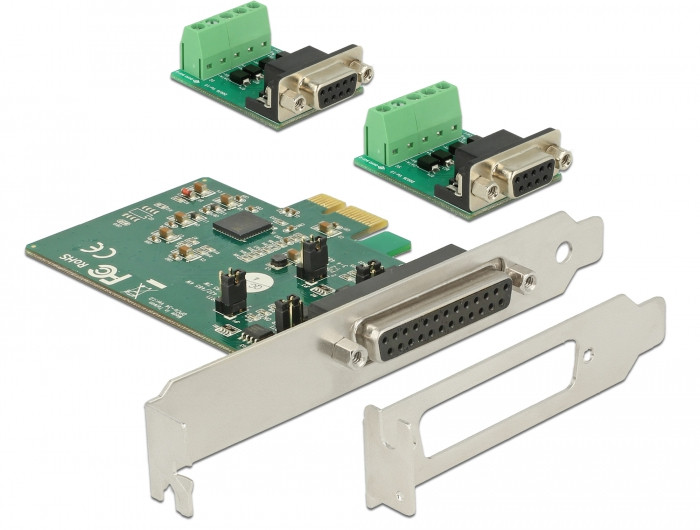

This RS-422/485 PCI Express card by Delock is suitable for industrial fieldbus systems, machine controllers, converters, measurement data acquisition etc. With its extensive overvoltage protection and the extended operating temperature range, this card is also highly suitable for use in demanding environments. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Műszaki adatok
Connection:
internal: 1 x PCI Express x1, V2.0
external: 1 x DB25 female
Connection cable: 1 x DB25 male > 2 x Serial RS-422/485 DB9 male
Chipset: Exar XR17V352
Modes
2 Wire RS-485 (max. 32 devices)
4 Wire RS-422 Point to Point
4 Wire Multi-Drop RS-485 and RS-422 (max. 10 devices)
Compatible with 16C550 UART
Data transfer rate up to 1 Mb/s
FIFO buffer: 256 byte
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity: even, odd, none, mark, space
15 KV ESD protection, on all signal pins
2 x Terminal block with surge protection, 600 W peak pulse
Cable length inkl. connectors: ca. 30 cm
Operation temperature: -30 C ~ 75 C
Humidity: 5 ~ 95 %
Dimensions (LxWxH): ca. 91 x 64 x 12 mm
Rendszerkövetelmények
Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64/Server 2012R2/Server 2016
PC with a free PCI Express slot
A csomag tartalma
PCI Express card
1 x DB25 cable
1 x Low profile bracket
2 x DB9 > 5 pin terminal blocks
4 x Jumper
Driver CD
User manual
